GM 4L80E, 4L85E Deep 1.5 Quarts Over
    GM 4L80E, 4L85E Deep 1.5 Quarts Over
    Purchase GM 4L80E, 4L85E Deep 1.5 Quarts Over
    • GM 4L80E, 4L85E Deep 1.5 Quarts Over
      Part Number 9313

    • Pan includes magnetic drain plug and mounting hardware.
      Price varies with finish. SEE PRODUCT INFO.

      $0.00

    • OPTIONAL - add machining of a 1/8 NPT hole for an aftermarket temperature sending unit:
    •

    Volume: 1.5 qts. over stock

    Dimensions: Click here for dimensions.

    Number of Bolts: 17

    PML designed this pan for vehicles with 4L80E, 4L85E transmission and needing a space saving, high quality pan.

    Benefits:

    • 1 1/2 quarts of extra capacity over the stock pan
    • Less than 1 inch larger than the stock pan
    • Drain hole and magnetic drain plug for easy fluid changes
    • Finned for cooling
    • Heavy duty sand cast aluminum construction
    • Machined flat gasket sealing surface
    • Can optionally be machined for a temperture sending unit
    • The distance from the flange surface to the inside bottom of the pan is approximately 2.6 inches. This is about the same as the stock pan so the bottom of the pan supports the filter. A custom filter, extension or support is not needed.

    Typical Applications:

    • Muscle cars such as Camaros, Chevelles
    • 1993 to 1996 Hummer H1 (see note)
    • Custom hot rods
    • Trucks with skid plates
    • Vans

    Always verify your transmission and clearance. Vehicle configurations vary.

    Many 1997 and newer vehicles have the frame cross member or exhaust running under the rear of the stock pan and do not have enough clearance for this pan. See PML Part Number 9437 for a transmission pan that clears the frame or exhaust.

    PML also makes a 4L80E, 4L85E pan that is 3 3/4 quarts over stock. It is Part Number 9167.

    Note for Hummer H1: This pan can fit on 1993 to 1996 H1 Hummers, but the frame cross member is very close. Check your Hummer to verify the clearance.

    Jaguar XJS models with the 4L80 transmission have a stock pan specific to the Jaguar. PML does not make a replacement pan for the Jaguar XJS 4L80 stock pan.

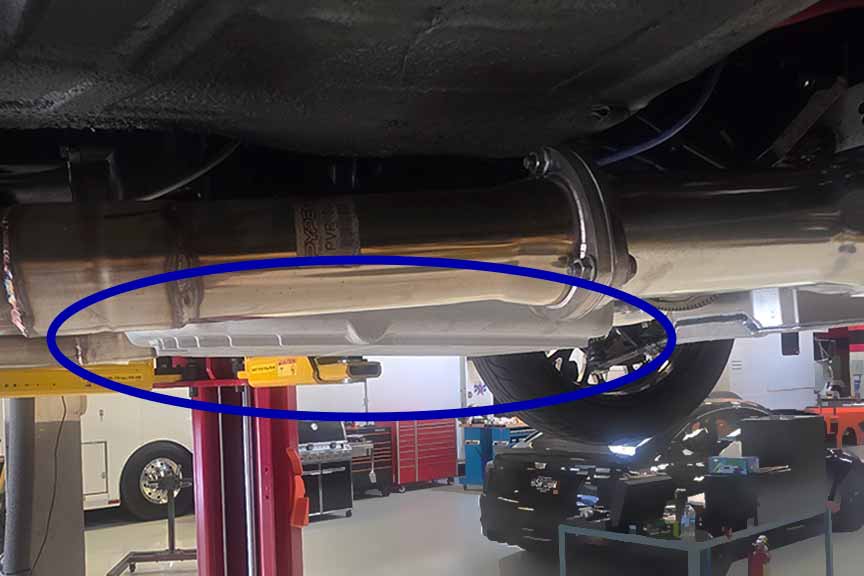

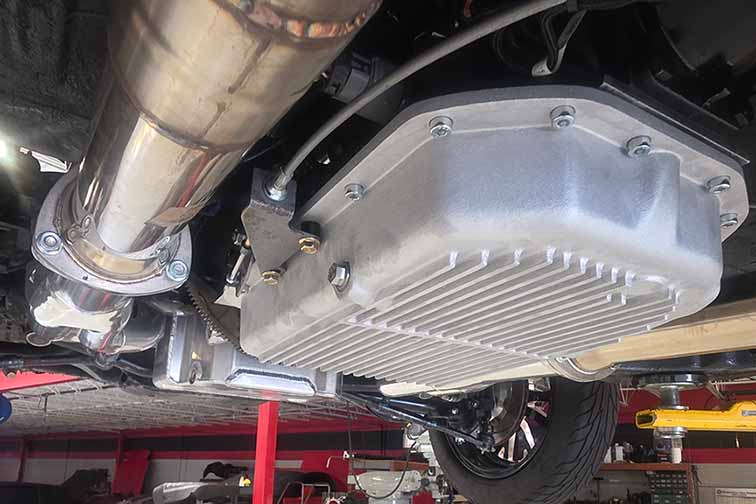

    1929 Model A

    Mike at HGM Transmission Controllers updated his Model A with a 4L80 transmission and a PML pan.

    Images show (from left to right): the Model A, the ground clearance with the PML pan installed, and a view from the bottom up of the PML pan installed.

    Model A with PML transmission pan    Clearance on Model A with PML 4L80 transmission pan    Model A with PML 4L80 transmission pan installed
    Click on an image to view larger in a separate window or tab.

    1967 Chevrolet Nova SS

    Ron installed this PML transmission pan in the polish finish on his 1967 Nova Super Sport with a 502 Ramjet.

    From left to right: 1967 Nova SS, 502 Ramjet engine, Stock 4L80 transmission pan

    1967 Nova SS   1967 Nova SS Ramjet engine   1967 Nova SS stock 4L80 transmission pan
    From left to right: 4L80 transmission valve body and filter, PML pan installed on Nova, PML pan looking from back to front
    1967 Nova SS 4L80 transmission valve body   1967 Nova SS PML 4L80 transmission pan installed   1967 Nova SS PML 4L80 transmission pan installed, view from the back
    Click on an image to view larger in a new tab or window.

    Drain Hole and Location for Temperature Sending Unit

    Drain on PML GM 4L80E, tranny pan  Click on image to view larger.

    Image shows the rear and driver's side of the pan where the drain hole is located. All pans include a magnetic drain plug along with the mounting bolts.

    On the passenger's side, the pan has a location that can be machined for an aftermarket temperature sending unit.

    If you would like PML to drill and tap a boss, there is a machining charge. A plug for the hole is included. The standard size is 1/8 NPT. If another size is needed, please call or email.

    Filter

    GM 4L80 filters  Click on image to view larger.

    There are two different filters for the 4L80. PML recommends the Early Model filter for this transmission pan. Example part numbers are:

    • GM OEM part number 08684221
    • Pioneer Filter Part Number 746052
    • Wix 58917

    Wix early 4L80 filter   Wix early 4L80 filter   Wix early 4L80 filter   Click on image to view larger.

    A filter extension is not needed.

    The installer must verify fitment and installation. Be sure to check that the filter sits correctly.

    Gasket

    PML recommends a cork or cork composite gasket with our GM 4L80, 4L80E transmission pans. For example, Mahle Part Number W39379. This gasket is about 0.070 inches thick. Many other manufacturers also make cork/cork composite gaskets for the 4L80 transmission that would work great with this PML transmission pan. This is just an example.

    Mahle 4L80 gasket, cork composite   Mahle 4L80 cork gasket part number   Mahle 4L80 cork gasket part number   Mahle gasket on PML 4L80 pan   Mahle gasket on PML 4L80 pan
    Click on an image to view larger.

    The installer must verify fitment and installation.

    Cable Bracket on Stock Pan

    Some stock pans have a bracket for the shift cable assembly attached to the flange.

    Our customer Darrell provided these Guidelines for Modifying the Bracket to work with the PML pan.

    Image PML pan installed with bracket modified to fit.

    Inside

    Inside PML GM 4L80 transmission pan, 1 1/2 quarts over stock  Inside of PML pan. Click on image to view larger.

    Included With PML 4L80 Deep Pan

    PML includes a magnetic drain plug with copper sealing washer and new mounting bolts with the pan.

    Drain plug and bolts included with PML 4L80 deep pan, as cast finish   Drain plug and bolts included with PML 4L80 deep pan, black powder coat finish  Click on image to view larger.

    PML Transmission Pan Compared to Stock

    PML Transmission Pan Part Number 9313 compared to stock   PML Transmission Pan Part Number 9313, compared to stock, top view
    Click on image to view larger in a new tab or window.
